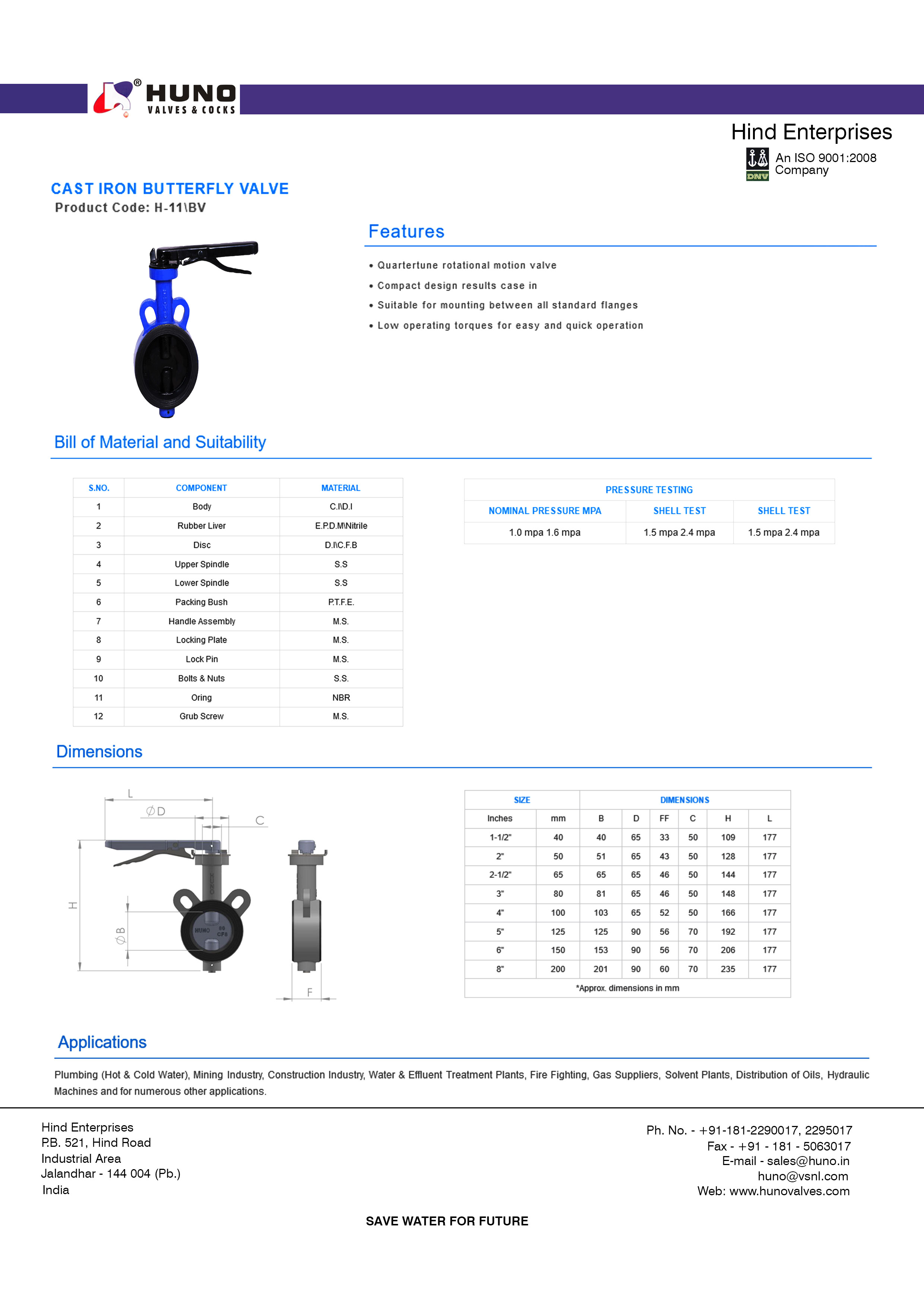

CAST IRON BUTTERFLY VALVE
Product Code: H-11\BV
-
Features
- Quartertune rotational motion valve
- Compact design results case in
- Suitable for mounting between all standard flanges
- Low operating torques for easy and quick operation
Bill of Material and SuitabilityDimensionsS.No. Component Material 1 Body C.I\D.I 2 Rubber Liver E.P.D.M\Nitrile 3 Disc D.I\C.F.B 4 Upper Spindle S.S 5 Lower Spindle S.S 6 Packing Bush P.T.F.E. 7 Handle Assembly M.S. 8 Locking Plate M.S. 9 Lock Pin M.S. 10 Bolts & Nuts S.S. 11 Oring NBR 12 Grub Screw M.S. Pressure Testing Nominal Pressure MPA Shell Test Shell Test 1.0 mpa 1.6 mpa 1.5 mpa 2.4 mpa 1.5 mpa 2.4 mpa Applications

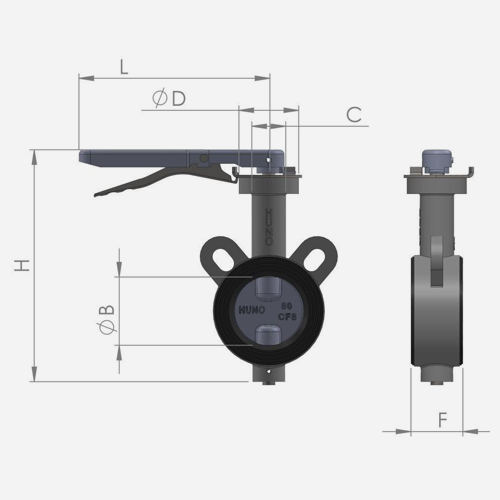

note : All threads are BSPT/IS:554SIZE Dimensions Inches mm B D FF C H L 1-1/2" 40 40 65 33 50 109 177 2" 50 51 65 43 50 128 177 2-1/2" 65 65 65 46 50 144 177 3" 80 81 65 46 50 148 177 4" 100 103 65 52 50 166 177 5" 125 125 90 56 70 192 177 6" 150 153 90 56 70 206 177 8" 200 201 90 60 70 235 177 *Approx. dimensions in mm Plumbing (Hot & Cold Water), Mining Industry, Construction Industry, Water & Effluent Treatment Plants, Fire Fighting, Gas Suppliers, Solvent Plants, Distribution of Oils, Hydraulic Machines and for numerous other applications.
