BRASS BALL VALVE

Product Code: H-13\BB\V

Brass Ball Valve

Features

1/2” (15 mm) to 2”(50mm) in screwed type 2 pc design
Threads as per BSPT
Stainless Steel mirror finish balls
Blow-out proof stem
P.T.F.E. seats and seals
Full Bore Design
Quick open\close by quarter turn operation

Bill of Material and Suitability

S.No.	Component	Material
1	Body	Brass	(B.S2872\CZ114)
2	Connector	Brass	(B.S2872\CZ114)
3	Valve Seat	P.T.F.E. (Teflon)	(BS.936)
4	Ball	Stainless Steel	(AISI-202\304\316)
5	Spindle/Stem	Stainless Steel	(AISI-202\304\316)
6	Seal	P.T.F.E. (Teflon)	(BS.936)
7	Nut	M.S.	(IS;226)
8	Lever	M.S.	(IS;226)
9	Lever Support	P.V.C.

Pressure Testing
Max C.W.P
Seat		Body / Seat
300 PSI	20 kg/cm²	200 PSI	14 kg/cm²
# Hydraulically

Suitability : Air, Water, Gas, Oil
Temperature: Max to 90 degree

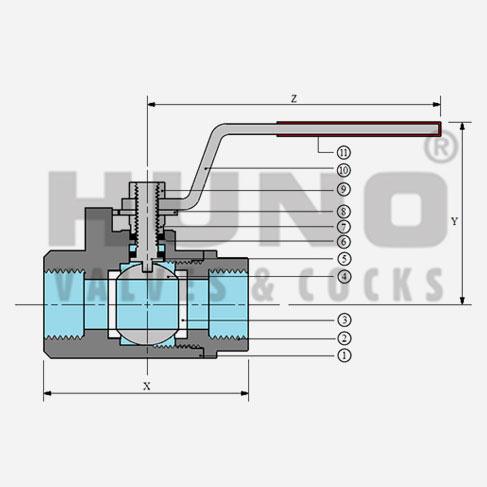

Dimensions

Brass Ball Valve

DN SIZE		Dimensions
Inches	mm	X*	Y*	Z*
1/2	15	54	51	91
3/4	20	58	55	110
1	25	67	61	130
1-1/4	32	84	68	140
1-1/2	40	96	75	150
2	50	108	85	210
*Approx. dimensions in mm

note : All threads are BSPT/IS:554

Applications

Air and Water
