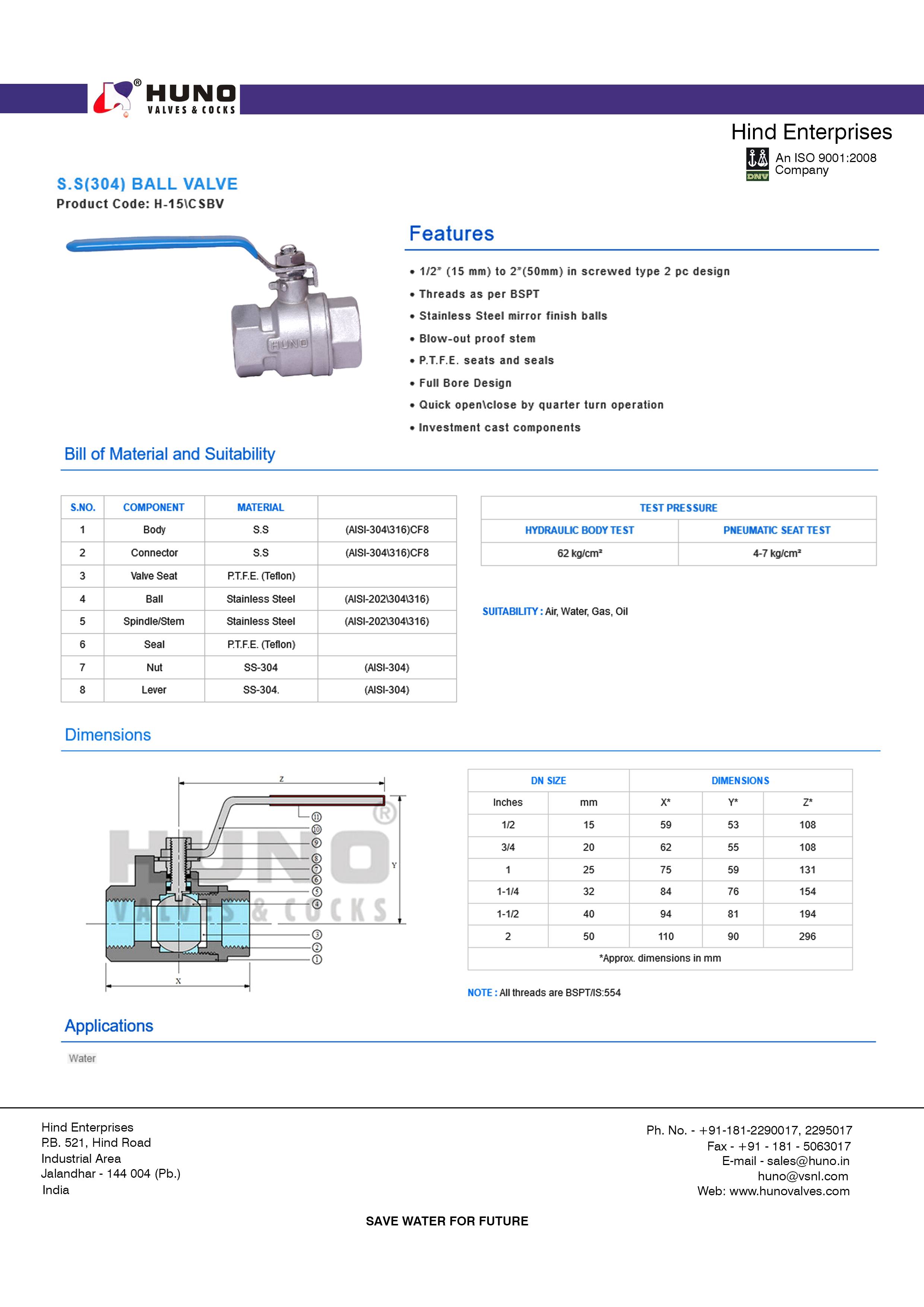

S.S(304) BALL VALVE
Product Code: H-15\CSBV
-
Features
- 1/2” (15 mm) to 2”(50mm) in screwed type 2 pc design
- Threads as per BSPT
- Stainless Steel mirror finish balls
- Blow-out proof stem
- P.T.F.E. seats and seals
- Full Bore Design
- Quick open\close by quarter turn operation
- Investment cast components
Bill of Material and SuitabilityDimensionsS.No. Component Material 1 Body S.S (AISI-304\316)CF8 2 Connector S.S (AISI-304\316)CF8 3 Valve Seat P.T.F.E. (Teflon) 4 Ball Stainless Steel (AISI-202\304\316) 5 Spindle/Stem Stainless Steel (AISI-202\304\316) 6 Seal P.T.F.E. (Teflon) 7 Nut SS-304 (AISI-304) 8 Lever SS-304. (AISI-304)
Suitability : Air, Water, Gas, OilTest Pressure Hydraulic Body Test Pneumatic Seat Test 62 kg/cm² 4-7 kg/cm² Applications
note : All threads are BSPT/IS:554DN SIZE Dimensions Inches mm X* Y* Z* 1/2 15 59 53 108 3/4 20 62 55 108 1 25 75 59 131 1-1/4 32 84 76 154 1-1/2 40 94 81 194 2 50 110 90 296 *Approx. dimensions in mm Plumbing (Hot & Cold Water), Mining Industry, Construction Industry, Water & Effluent Treatment Plants, Fire Fighting, Gas Suppliers, Solvent Plants, Distribution of Oils, Hydraulic Machines and for numerous other applications.
