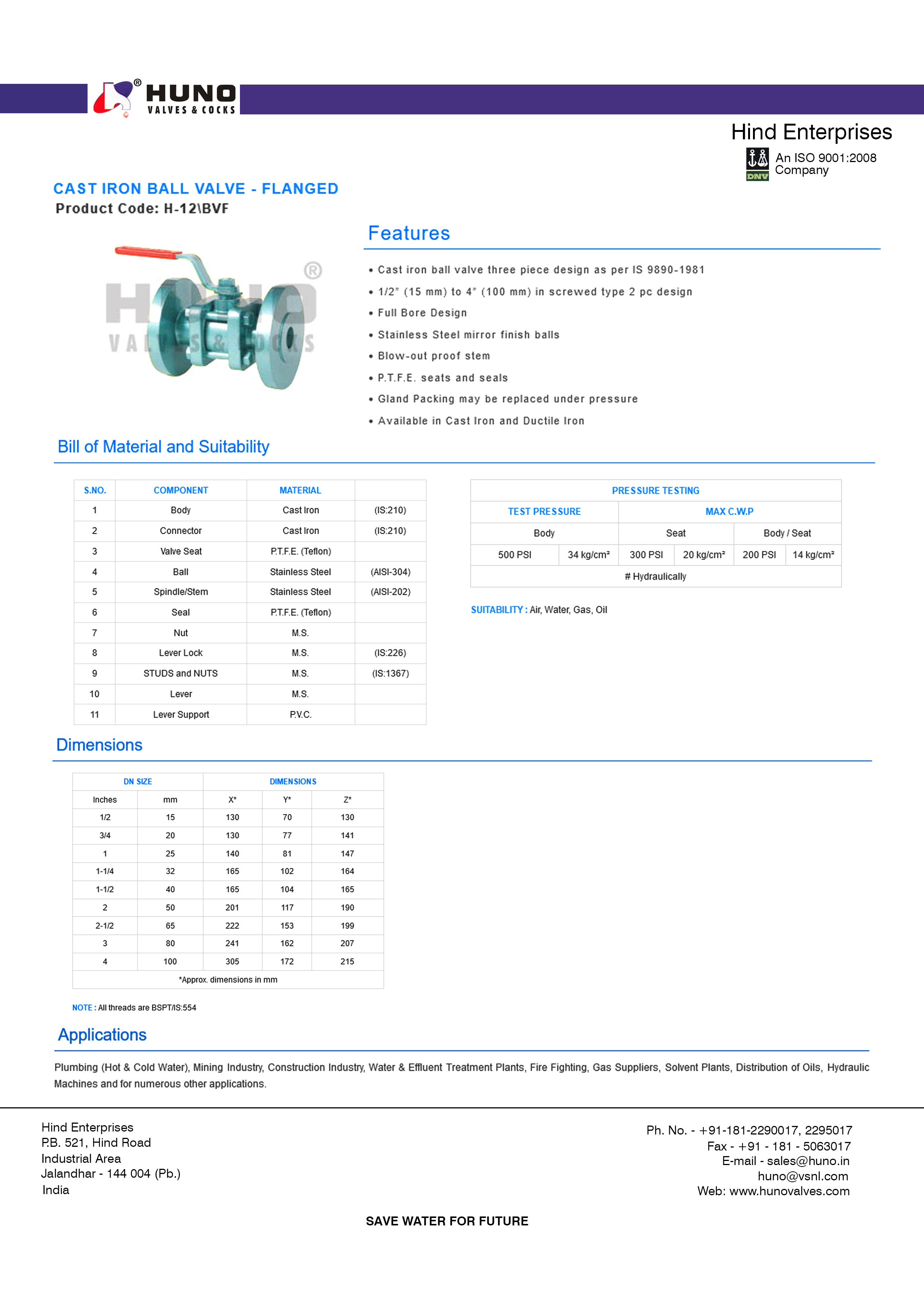

CAST IRON BALL VALVE - FLANGED
Product Code: H-12\BVF
-
Features
- Cast iron ball valve three piece design as per IS 9890-1981
- 1/2” (15 mm) to 4” (100 mm) in screwed type 2 pc design
- Full Bore Design
- Stainless Steel mirror finish balls
- Blow-out proof stem
- P.T.F.E. seats and seals
- Gland Packing may be replaced under pressure
- Available in Cast Iron and Ductile Iron
Bill of Material and SuitabilityDimensionsS.No. Component Material 1 Body Cast Iron (IS:210) 2 Connector Cast Iron (IS:210) 3 Valve Seat P.T.F.E. (Teflon) 4 Ball Stainless Steel (AISI-304) 5 Spindle/Stem Stainless Steel (AISI-202) 6 Seal P.T.F.E. (Teflon) 7 Nut M.S. 8 Lever Lock M.S. (IS:226) 9 STUDS and NUTS M.S. (IS:1367) 10 Lever M.S. 11 Lever Support P.V.C.
Suitability : Air, Water, Gas, OilPressure Testing Test Pressure Max C.W.P Body Seat Body / Seat 500 PSI 34 kg/cm² 300 PSI 20 kg/cm² 200 PSI 14 kg/cm² # Hydraulically Applications
note : All threads are BSPT/IS:554DN SIZE Dimensions Inches mm X* Y* Z* 1/2 15 130 70 130 3/4 20 130 77 141 1 25 140 81 147 1-1/4 32 165 102 164 1-1/2 40 165 104 165 2 50 201 117 190 2-1/2 65 222 153 199 3 80 241 162 207 4 100 305 172 215 *Approx. dimensions in mm Plumbing (Hot & Cold Water), Mining Industry, Construction Industry, Water & Effluent Treatment Plants, Fire Fighting, Gas Suppliers, Solvent Plants, Distribution of Oils, Hydraulic Machines and for numerous other applications.
