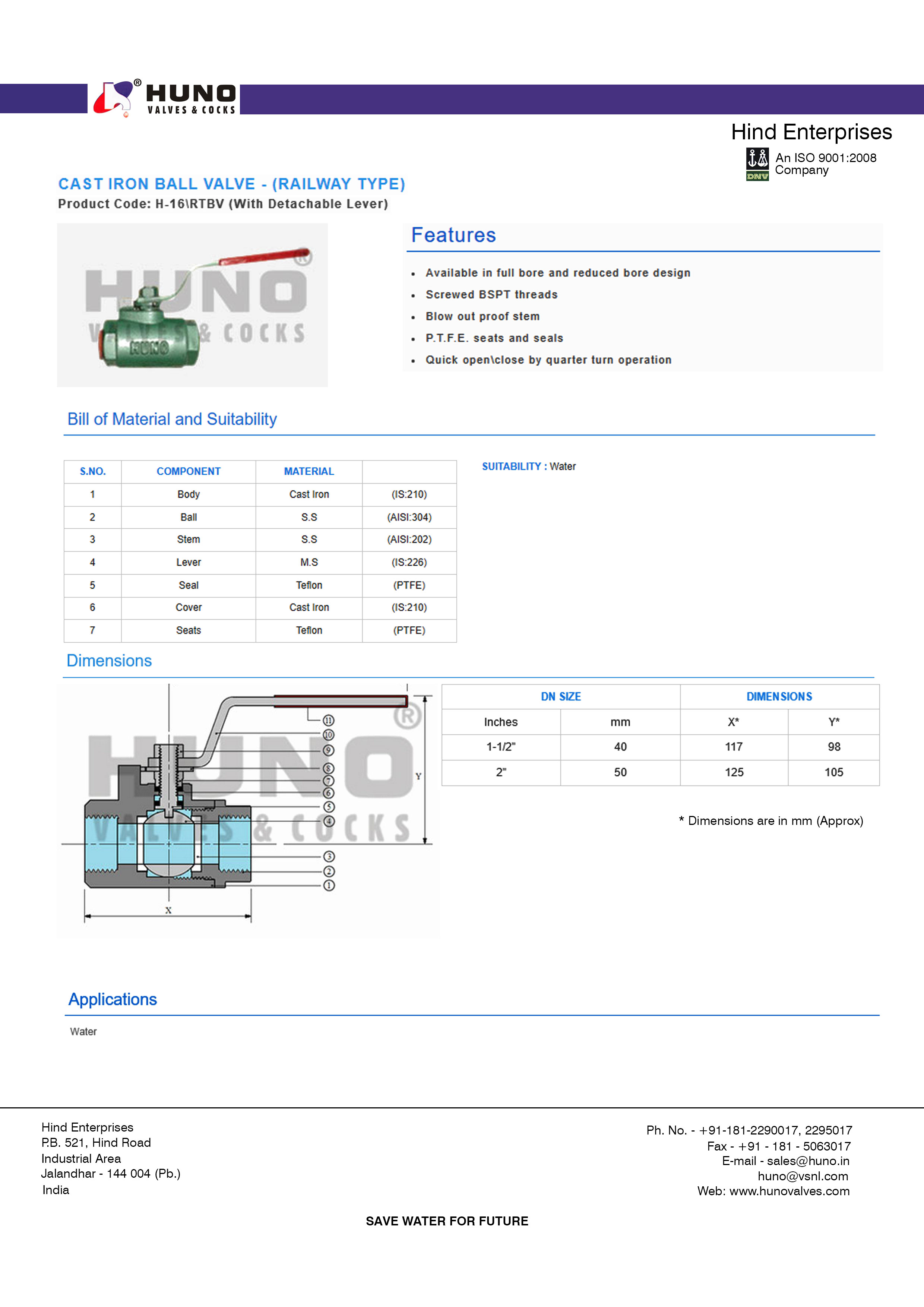

CAST IRON BALL VALVE - (RAILWAY TYPE)

Product Code: H-16\RTBV (With Detachable Lever)

Cast Iron Ball Valve (Railway Type)

Features

Available in full bore and reduced bore design
Screwed BSPT threads
Blow out proof stem
P.T.F.E. seats and seals
Quick open\close by quarter turn operation

Bill of Material and Suitability

S.No.	Component	Material
1	Body	Cast Iron	(IS:210)
2	Ball	S.S	(AISI:304)
3	Stem	S.S	(AISI:202)
4	Lever	M.S	(IS:226)
5	Seal	Teflon	(PTFE)
6	Cover	Cast Iron	(IS:210)
7	Seats	Teflon	(PTFE)

Suitability : Water

Dimensions

Cast Iron Ball Valve (Railway Type)

DN SIZE		Dimensions
Inches	mm	X*	Y*
1-1/2"	40	117	98
2"	50	125	105

Applications

Water
